Hero and Detail Shot

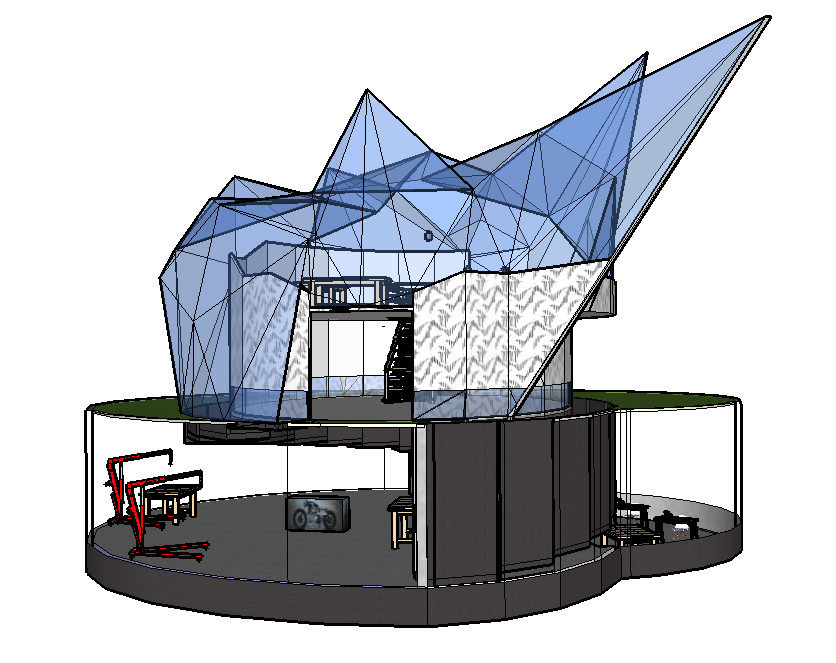

Hero Shot

Detail Shot

I chose the hero shot for its ability to show the melding of the above and below levels in shape and support. The shot conveys the grandeur of the geometric roof which flows down into a basement column supporting the stairs and ceiling and the balcony of the second floor which echos the movement of the basement stairs. The detail shot captures the subtle shape of the stairs that controls and ties in the randomness of the glass roof with the rest of the modestly composed building.

Animations

Week 4 Developed Model

Wooden Stairs with the metal supporting beams that reflect the railing in a subtle zigzag shape

Cement Basement, Glass roof and wall decorative structure, "Fresh" Texture applied to the outside wall of above and ground levels

Balustrades added to stair design on second floor, 1.12m high, wire barrier with metal poles

Side Section

Front Section. Basement cement, roof glass

Basement Above Section: cement

Developed Stairs, wood, metal and wire

Week 3: Textures in Model

Texture In-between: Fresh

Texture Below (Glass Design): Reverse

Texture Above: Crystalline

Video Caption: Relationship of Stair with texture. Below, a reference to Autofabrica's exhaust pipes, the curved window decor staggers up each panel representing the curved, overlapping elements of the ground level stair case. Above the textured floor references the asymmeticity of the stairs and glass roof.

36 Textures

Stair Model

Concept

The two stairs are to subtly reflect the stand out properties of their level of the building while reflecting qualities of the other within their design. Without connecting with the other, stair will provide a hazy merge into the other both in location and form. A necessary concept in order for a union between lighting and automotive products.

Stair Sections

Bernabei Freeman: Geometric

Stair 1

Stair 2: Chosen for modelling

AUTOFABRICA: Curved

Stair 1

Stair 2: Chosen for modelling

Sketchup Models

Bernabei Freeman Stair 2

Side Perspective

Front View

Ellipse supports, reference shape of the building and 2nd stair

Top View

A relationship between the geometric randomness of the glass roof and stair railing.

AUTOFABRICA Stair 2

Front Perspective

Extension of "showroom" into the basement without interruption of the workshop is provided by glass panels

Staggered wall corresponding with steps

Top View

Relationship with building
